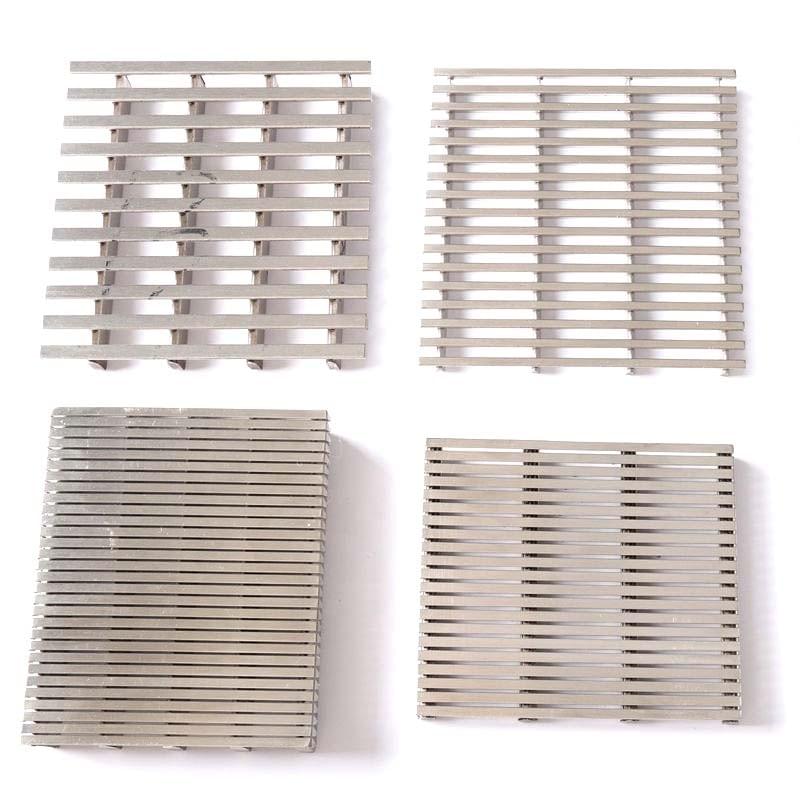

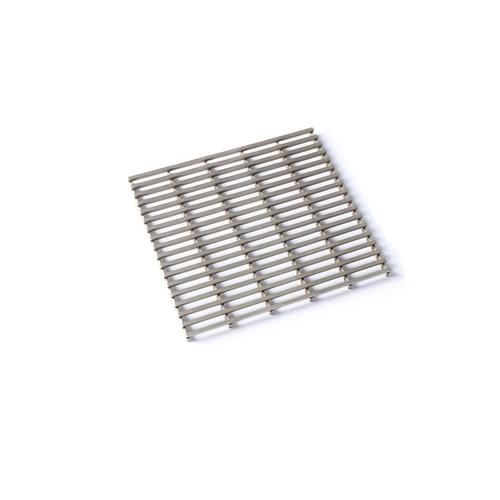

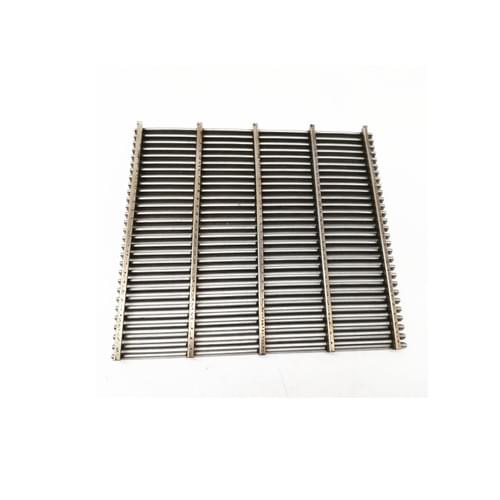

Wedge Wire Screen Filter Plate

Material: stainless steel 304, 304L, 316, 316L, 321,430 or as per your request custom

Shapes: Could cut to any shape according to requirements, such as round, semicircle, sector, and so on.

The wedge wire sieve screen panel is an important working part of the screening machine to complete the screening process. Each screening machine must select a sieve plate that meets its working requirements. The various characteristics of the material, the different structures of the sieve plate, the material and the various parameters of the sieve machine have a certain influence on the screening ability, efficiency, running rate and life of the vibrating screen.

Different materials and different places should use different sieve plates to achieve the best effect of screening. The sieve plate should have sufficient strength, high opening ratio and difficulty in plugging holes. When the vibrating screen vibrates, the wedge wire sieve plate passes through materials of different shapes and sizes, material size, and under the action of vibration force, the materials of different particle sizes are separated to achieve the purpose of classification.

Features:

1) Widely used in various kinds of medium filtering

2) As the fitting using in the water-treating equipment ( the environment protection; the sea water transforms into the industrial water and life use water desalination treatment; running water, etc)

3) Wedge wire screen style isn't easy to be locked, it's easy to clean.

4) All kinds of shapes and material can be custom

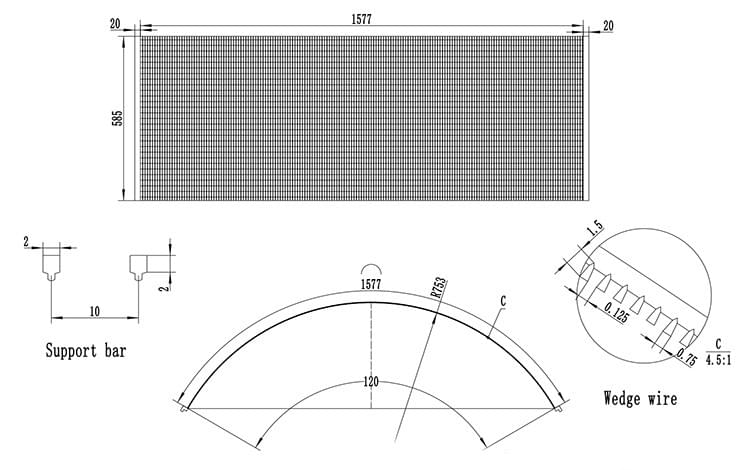

Specifications of  stainless steel wedge wire sieve screen plate:

Length Range: Up to 6000mm

Width Range: Up to 6000mm

Slot Range: 20 microns to 3000 microns (Tolerance:+-5 micron)

Other Shapes: Could cut to any shape according to requirement, such as round, semicircle, sector, and so on.

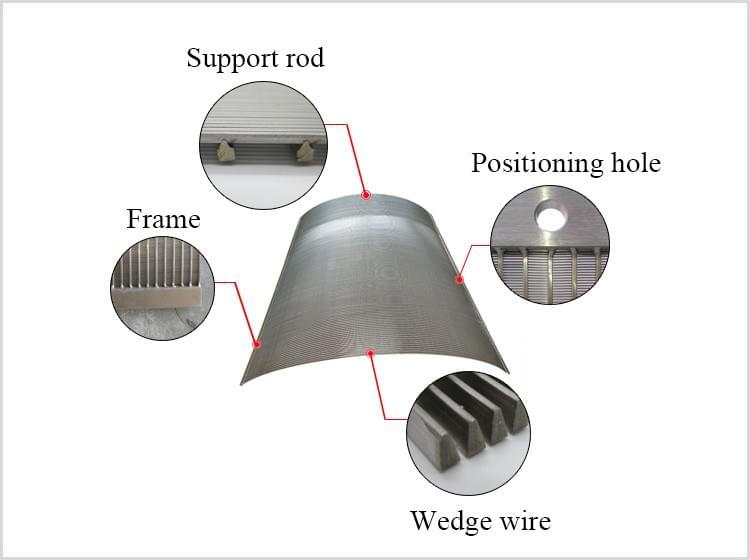

Wedge Wire:  0.5x1.5; 0.75x1.5; 1x2; 1.5x2; 2x3; 2x4; 3x5

Support Rod: 1.5x2.5; 2x3; 1.5x2.5; 2x3; 1.5x2.5; 2x3; 1.8x2.5; 2x3; 2x4; 3x5; 3x6; 3x10; 4x6; 2x4; 5x6; 5x8

End Finishing: With the frame, without any frame, according to request.
