Knitted Wire Mesh:

Knitted wire mesh is a type of wire fabric manufactured by a circular knitted machine. It can be made of various materials, such as stainless steel, copper, nickel, Monel, Teflon plastic and other alloy materials. The various material wires are knitted into a sleeve of continuous stocking of inter-linked wire loops.

knitted wire mesh can be divided into different types according to different standard. You can refer to the following types, and choose the best fit for you.

1. Different materials of the knitted mesh:

According to the material. The knitted wire mesh can be made of various materials including SS304 316 316L 314 317 321 347 904L 410 430 434 310S 321 2205 2507, Monel, Inconel, hastelloy wire and other alloy wires, pure nickel, Titanium ,FeGrAl ,copper brass and phosphor copper wires.

2. According to wire types. The knitted wire mesh can made by flattened wires or round wires. The wires have different wire diameters and can be used in different applications. Just choose according to your requirements.

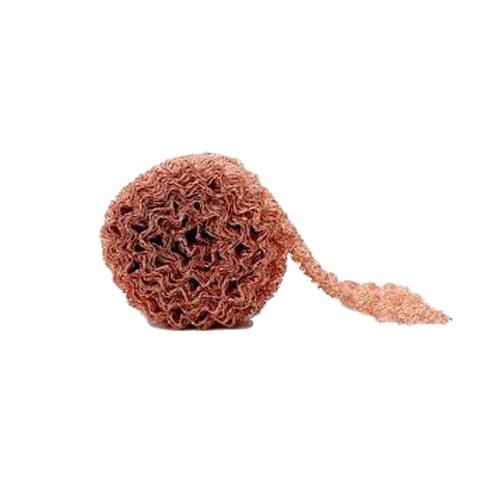

3. According to the appearance. The knitted wire mesh can be flattened or ginning types. The original appearance of knitted wire mesh is flattened. The flattened knitted wire mesh can be crimped by machines to form different shapes, width and depths crimps to suit different applications.

4. According to the technology. Commonly, the knitted wire mesh is produced in rolls. For some applications, the knitted wire mesh can be compressed into different shapes, such as rectangular, round, ring.

Common  Specification:

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire. Common diameter is 0.20mm-0.25mm

Hole size: from the (2 × 3 mm) to the (4 × 5mm) then (12 × 6mm)

Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400,500 mm, 600mm, etc.

Standard type 40-100 60-150 105-300 140-400 160-400 200-570mm

Efficient type 60-100 80-100 80-150 90-150 150-300 200-400 300-600mm

High-penetration type 20-100 30-150 70-400 100-600 170-560mm

Damped 33-30 38-40 20-40 26-40 30-40 30-50 48-50 30-60 30-80 50-120mm

Features of knitted wire mesh

l Various materials. Different material knitted wire mesh can be used in various applications for different requirements.

l Solid structure. The interlocking structure of knitted wire mesh make the structure is solid, which will not loose when using.

l High efficiency. The knitted wire mesh can be used as demister pad for high filtering efficiency.

l Corrosion and rust resistance.

l Acid and alkali resistance.

l Temperature resistance.

l Wide range of applications.

Applications of knitted wire mesh

l Knitted wire mesh is widely used as demister pads for gas and liquid separators.

l Knitted wire mesh can be used for cleaning machines, kitchens and other components and parts.

l Compressed knitted wire mesh can be installed in the engines to decrease noise and reduce shocks.

l Knitted wire mesh can be used as shielding mesh for EMI/RFI shielding.

 Knitted Wire Mesh Specification
