Copper is also called red copper because of the red color. The purity of copper is 99.8%. The copper wire is woven into a continuous and regular square meshes. The aperture of copper woven wire mesh can range from 2 meshes to 100 meshes, which can suit for different requirements. Except for the pure copper woven wire mesh, there are copper alloy woven wire mesh, such as the brass woven wire mesh and phosphor bronze woven wire mesh.

The copper woven wire mesh is non-magnetic, so it is also called shielding screen in the circuits, laboratories and computer rooms, it also has outstanding wear resistance and sound insulation performance.

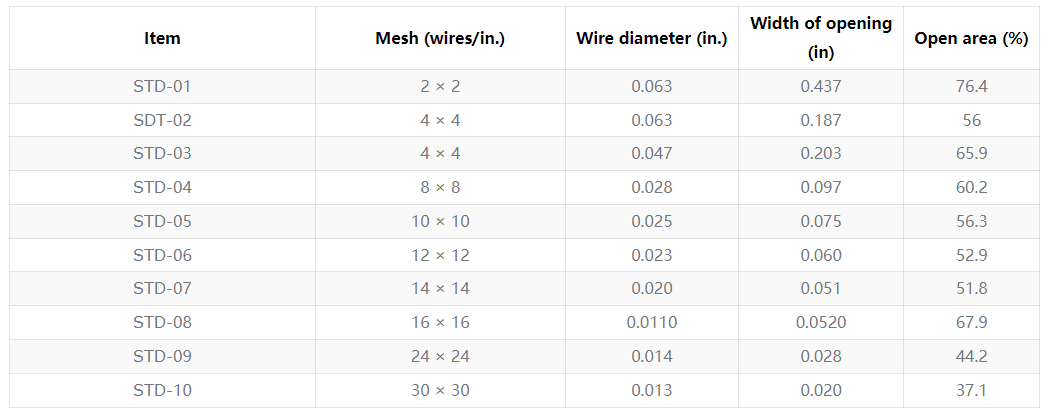

Specifications

• Material: 99.8% copper wire.
• Weaving type: plain weave.
• Wire diameter: 0.0045" - 0.063".
• Mesh size: 2 mesh - 100 mesh.
• Color: red.
• Width: 1m, 1.5m, 1.5m and 2m.
• Length: commonly is 30m, other sizes can be customized.

Features

• Non-magnetic.
• Wear resistance.
• Acid and alkali resistance.
• Good ductility.
• Sound insulation.
• EMI and EMF resistance.

Application

• The copper woven wire mesh can be used as the shielding screen in the cable circuits, laboratories and computer rooms.
• The copper woven wire mesh is widely used in the power sector, aerospace, information industry and military for RFI and EMI shielding.

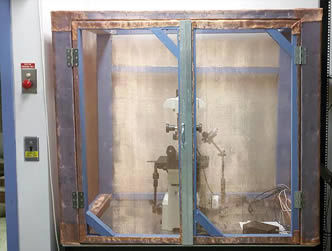

• Copper woven wire mesh can be used as the faraday cage.
• Copper woven wire mesh can be installed onto buildings to insulate noise.

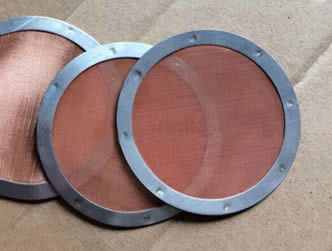

• Copper woven wire mesh can be made to filter discs for liquid, gas and solid filtering.
