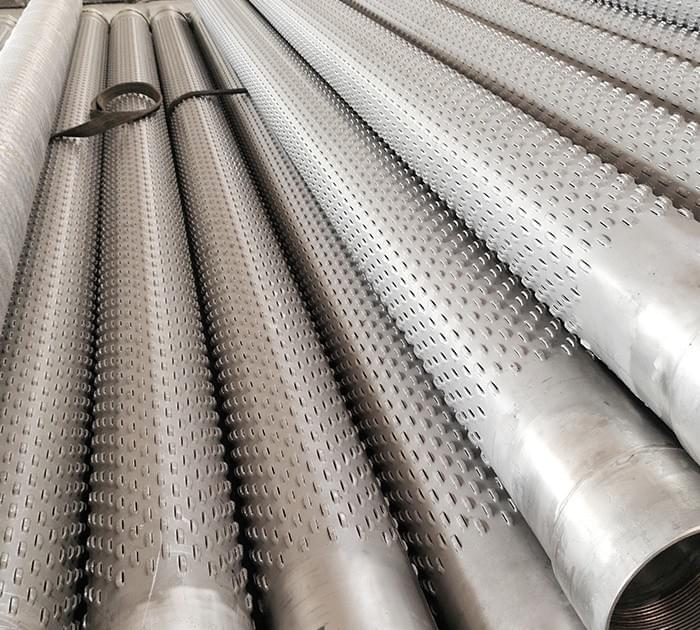

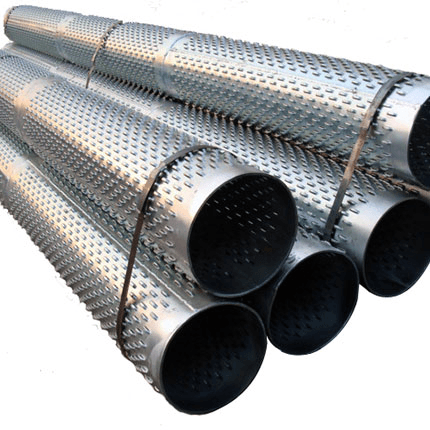

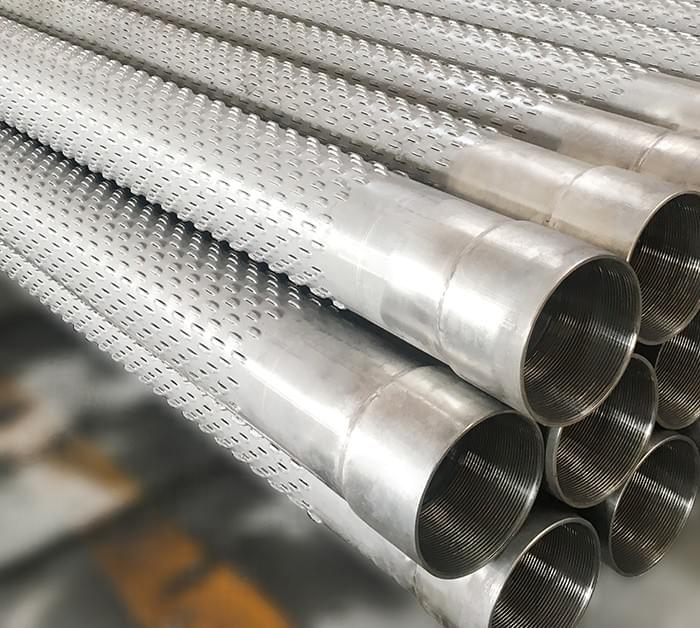

Bridge slot screen features bridge-like slot, which creates a gap between the well casing and the packed gravel. Bridge slots are spaced in rows or in staggered state.Straight seam welded bridge slot screen (ERW) is manufactured on a press from flat sheets or plates. The bridge type perforated steel sheets or plates are then rolled into cylinders and the seam welded. As well as, there is another new craft of bridge slotted pipe here, spiral welded bridge slot screen (SSAW). Meanwhile, there are 2 options of the bridge type slot patterns, straight in rows and in staggered. The slots size is precise and can be changed as practical requirements. Bridge slot pipe screens usually use low carbon steel Q235, stainless steel 304, 304L, 316L. To prolong its service life, galvanized well screens are still supplied.
Bridge slot screen tube is used in projects of water well, mining & mineral processing, municipal water supply, refining & petrochemical, water treatment, architecture and construction, etc.

Technical Parameters of Bridge Water well screen slot pipes:
Screen pipe Sizes
•OD:from 4 in to 80 in
•WT from 3 mm / 0.12 in. to 10mm / 0.4 in.

Well Screen Bridge Pipe Materials of Construction:
•All types of steel such as carbon steel, galvanized steel, coated steel and stainless steel types 304, 304L, 316, 316L & 430, for example.

Features of Slotted Bridge Water Well Screen Pipes
Bridge slot has outstanding anti-plugging performance for its unique bridge construction.
Bridge construction also enhances the mechanical strength against twisting, compressive and tensile forces.
Diverse external coatings are available to extend the operational lives of watering wells.
Bridge slot screen is lightweight and quite affordable compared with other conventional well screens.
Slot widths can be customized to satisfy customers’ specific requirements.
